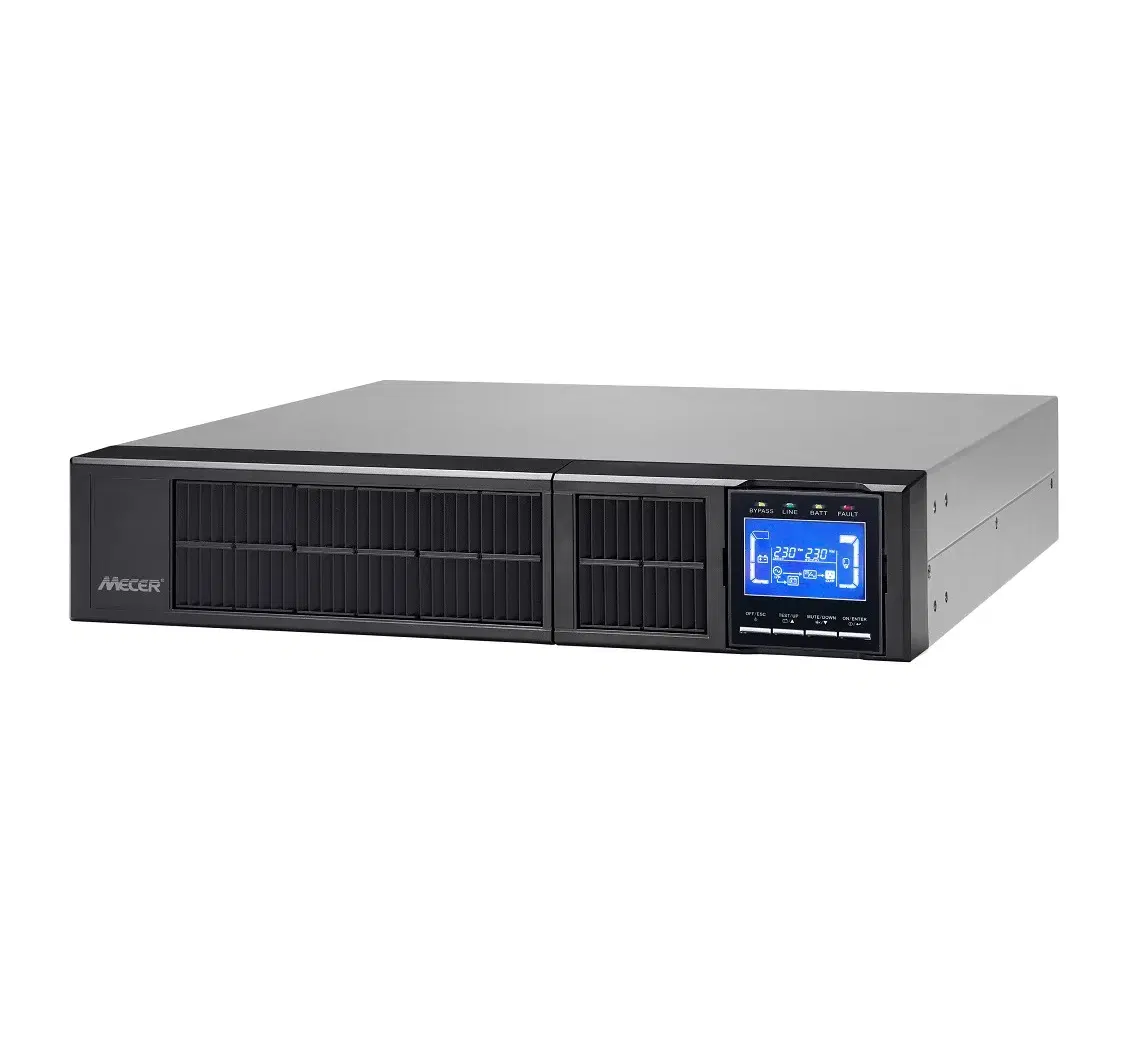

Mecer ME-1000-WPRU Winner Pro UPS, 1KVA Online Rackmount UPS
Mecer ME-1000-WPRU Winner Pro UPS is a reliable and efficient 1KVA online rackmount UPS. With a capacity of 1KVA (1000VA) and an output power of 700W, The 1KVA RACK mount 2U provides stable and uninterrupted power to your critical devices. The UPS features a sealed lead-acid battery with a voltage of 36V DC, offering a backup time of approximately 10-15 minutes, depending on the load.
Mecer ME-1000-WPRU Winner Pro 1KVA Online Rackmount UPS
Mecer ME-1000-WPRU Winner Pro 1KVA Online Rackmount UPS from the leading mecer UPS online dealer, buy online ME-1000-WPRU Winner Pro 1KVA Online Rackmount UPS ME-1000-WPRU 1000VA / 800W Power Supply Mecer 1000VA/800W 2U Rackmountable UPS
3KVA Rackmount UPS Specifications
- Model: Mecer ME-1000-WPRU Winner Pro UPS
- UPS Type: Online Rackmount
- Capacity: 1KVA (1000VA)
- Output Power: 700W
- Input Voltage: 230V AC
- Output Voltage: 230V AC
- Output Frequency: 50/60Hz ± 0.2Hz
- Waveform: Sine wave
- Battery Type: Sealed lead-acid
- Battery Voltage: 36V DC
- Battery Backup Time: Approximately 1015 minutes (depending on load)
- Transfer Time: Zero transfer time (Online mode)
- Communication Ports: USB, RS232 SNMP
- Software: PowerShield³ (included)
- Surge Protection: Yes
- Overload Protection: Yes
- LCD Display: Yes
- Rackmount Size: 2U
- Dimensions: 438mm x 438mm x 88mm
- Weight: 17kg
| ME-1000-WPRU 1000VA Specifications and Features | |
| Product Code | ME-1000-WPRU border=”0″ / |
| CAPACITY | 1000 VA / 800 W |
| PHASE | Single phase with ground |
| INPUT | |
| Input Voltage Range | 55-150 VAC or 110-300 VAC (Based on load at 50%); 85-140VAC or 160-280VAC (Based on load at 100%) |
| Nominal Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Frequency Range | 40Hz ~70 Hz |
| Power Factor | >= 0.99 @ Nominal Voltage (100% load) |
| ME-1000-WPRU 1000VA OUTPUT | |
| Voltage Regulation | ± 1% |
| Output Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz |
| Transfer Time : AC Mode to Battery Mode | Zero |
| Transfer Time : Inverter to Bypass | 4 ms (Typical) |
| Transfer Time : Waveform (Batt. Mode) | Pure Sine Wave |
| Current Crest Ratio | 3::1 |
| Harmonic Distortion | <= 3% THD (Linear Load); <= 6% THD (Non-linear Load) |
| Frequency Range (Synchronized Range) | 47~53 Hz or 57~63 Hz |
| ME-1000-WPRU Mecer 1000VA/800W EFFICIENCY | |
| Battery Mode | 0.83 |
| AC Mode | 0.88 |
| ME-1000-WPRU 1000VA UPS BATTERY | |
| Long-run Model : Battery Type | Depending on the capacity of external batteries |
| Long-run Model : Charging Current (max.) | 1A/2A/4A/6A (Adjustable) |
| Long-run Model : Charging Voltage | 27.4 VDC ± 1%, 41.0 VDC ± 1% |
| Long-run Model : Numbers | 2, 3 |
| Standard Model : Battery Type | 12 V / 9 AH |
| Standard Model : Charging Current (max.) | 1A |
| Standard Model : Charging Voltage | 274 VDC ± 1% |
| Standard Model : Numbers | 2 |
| Standard Model : Typical Recharge Time | 4 hours recovery to 90% capacity |
| ME-1000-WPRU 1000VA UPS INDICATORS | |
| LCD | Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators |
| ALARM | |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| ENVIRONMENT | |
| Operating Humidity | 20~90% RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 50dB @ 1 Meter |
| PHYSICAL | |
| Standard Model : Dimension, D x W x H (mm) | 310 x 438 x 88[2U] |
| Standard Model: Net Weight (kgs) | 12 |
| Long-run Model : Dimension, D x W x H (mm) | 310 x 438 x 88[2U] |
| Long-run Model: Net Weight (kgs) | 9 |
| MANAGEMENT | |
| Optional SNMP | Power management from SNMP manager and web browser |
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC |
Conclusion
The Mecer ME-1000-WPRU Winner Pro UPS is a reliable and efficient 1KVA online rackmount UPS. With a capacity of 1KVA (1000VA) and an output power of 700W, it provides stable and uninterrupted power to your critical devices. The UPS features a sealed lead-acid battery with a voltage of 36V DC, offering a backup time of approximately 10-15 minutes, depending on the load
