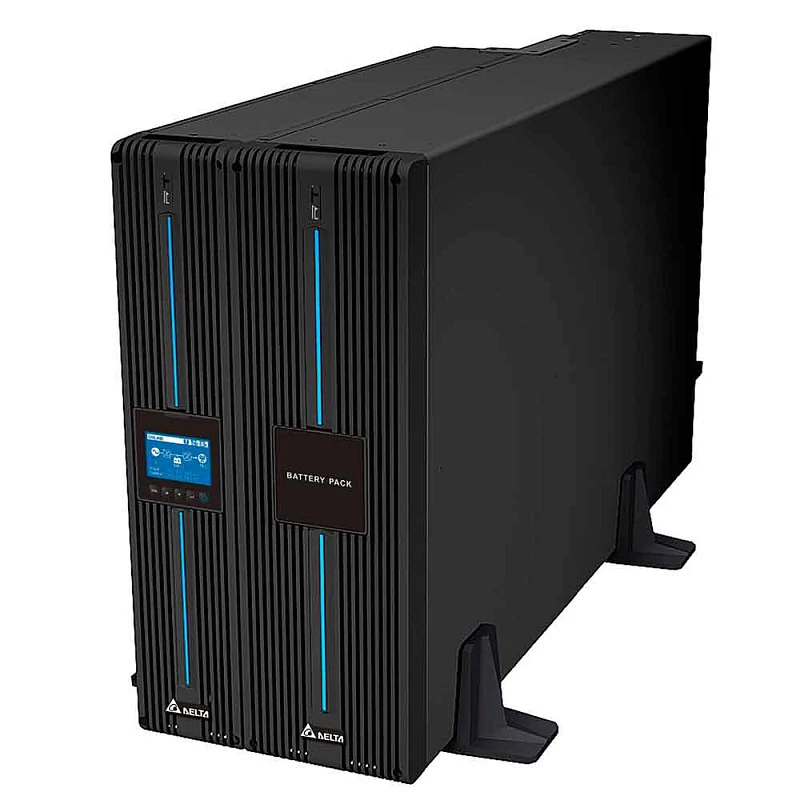

Delta UPS RT-Series 8kVA S w/ 20x9Ah batt. & PDB (UPS802R2RT0B035)

In Stock

KSh 253,000.00

In Stock
Order via whatsapp
Have a Question? Ask a us

+254 (0) 111 053-530 |+254717492458

Best Prices

Price match guarantee

Guaranteed Quality

Always the genuine Prooducts

In-House Experts.

We know the products

Warranry

Genuine Manufucturer Warranty

Category:

Description

UPS Delta RT-Series 8kVA Technical Specifications

Input parameters
Rated power, VA/W 8000 / 8000
Voltage range 100~280V (single phase, 2 wires plus ground)
Voltage range 100~175V with linear derating at 50~100% load
Frequency 40~70Hz
Power factor > 0.99 (at full load)
Current harmonic distortion factor < 3%
Input connections Input terminal block x 1
output parameters
Power factor 1
Voltage 200, 208, 220, 230, 240 VAC current (single phase)
Frequency 50/60Hz±0.05Hz
Voltage THD < 2% (with linear load)
Overload capacity ≤ 105%: continuous operation 106 ~ 125%: 5 min. 126 ~ 150%: 1 min. > 150%: 500ms
conclusions IEC C13 x 6 (non-managed) IEC C19 x 4 (non-managed) Terminal block x 1 (non-managed) IEC C19 x 1 (managed)
efficiency
Normal mode up to 95.5%
Economy mode up to 99%
Rechargeable batteries
Battery capacity 20×9 Ah
Battery voltage 240 V DC current
Charging current 1.5 A (default) 8 A (maximum)
Common parameters
Noise level 50 dB
Display Graphic LCD display with multilingual interface
Communication interfaces 1 MINI slot, 1 USB port, 1 RS232 port, 1 RS485 port, 1 REPO/ROO port, 4 dry contacts
Dimensions (W × D × H), mm 440×750×218
Weight, kg 85.5
Ambient operating temperature 0~55°C
Relative humidity of the environment 5 ~ 95% (non-condensing)

UPS runtime table Delta RT-Series 8kVA S w/ 20x9Ah batt. &PDB

Number of batteries load % 25 50 75 100
UPS + 1 VBM 36.3 min 15.6 min 9.3 min 5.1 min
UPS + 2 VBM 71 min 27 min 14.5 min 9.6 min
UPS + 3 VBM 119 min 49.5 min 27.5 min 17.5 min
UPS + 4 VBM 167.5 min 73.5 min 42.5 min 27.5 min
UPS + 5 VBM 217 min 98 min 58 min 39 min
