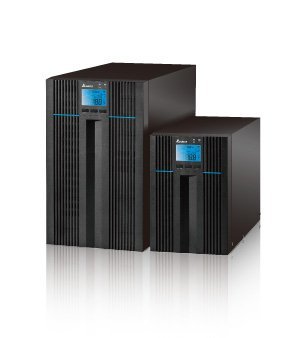

Delta UPS N 2KVA I/O=230/230 50HZ WB(EMEA) Online Delta UPS

Description

New N 2kVA Delta UPS Technical Specifications

Power Rating 2kVA/1.8kW
Waveform Pure Sine Wave

Input

Nominal Voltage 220/230/240 Vac
Voltage Range 175 ~ 280 Vac (100% load);80 ~ 175 Vac (50% ~ 100% load)
Frequency 50/60 Hz ± 10 Hz
Power Factor > 0.99 (full load)
iTHD < 3%

Output

Power Factor 0.9
Voltage 220/230/240 Vac
Voltage Regulation ± 2% (linear load)
Frequency 50/60 Hz ± 0.05 Hz
vTHD < 3% (linear load)
Overload Capability < 105%: continuous; 105% ~ 125%: 1 minute;125% ~ 150%: 30 seconds
Cress Factor 3:1
Connection IEC C13 x 6, C19 x 1

Efficiency

Online Mode Up to 93%
Battery Voltage 48 Vdc

Battery

Typical Backup Time 4.5 min. (full load); 13 min. (half load)
Recharge Time 3hrs to 90%
Charge Current 1.5A
