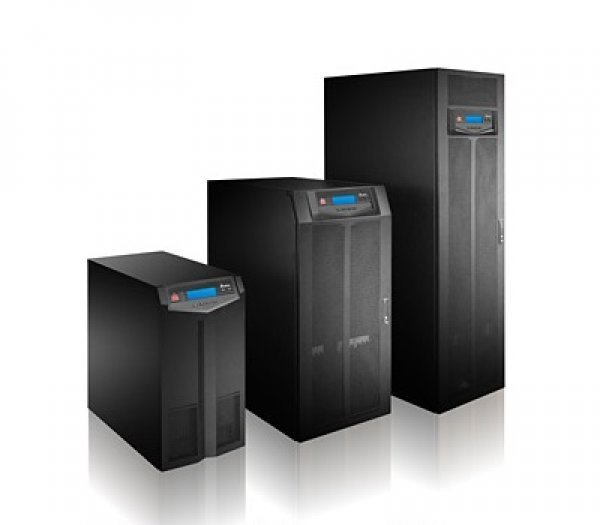

30KVA Delta HPH integrated battery 30kVA 380/400/415V, 50/60Hz, inbuilt battery 2×40

Name: 30KVA Delta HPH integrated battery 30kVA 380/400/415V, 50/60Hz, inbuilt battery 2x40
SKU: 3293
Availability: InStock

KSh 1,195,000.00

Category: Delta UPS

HPH integrated battery 30kVA 380/400/415V, 50/60Hz, inbuilt battery 2×40

Technical Specifications

Model	HPH-30KVA
Power Rating	30 kVA/Kw
Input Nominal Voltage Voltage range Frequency Power Factor Current Harmonic Distortion	380/220Vac, 400/230Vac, 415/240Vac (3 phase, 4-wire + G) [20-40K]: 300~477 Vac (full load), 228~300 Vac (70%~100% load) [60-120K]: 332~477 Vac (full load), 228~332 Vac (63%~100% load) 40~70Hz > 0.99 (full load) < 3%
Output Voltage Voltage Regulation Voltage Harmonic Distortion Overload Capability Output Power Factor Frequency	380/220Vac, 400/230Vac, 415/240Vac (3 phase, 4-wire + G) ± 1 % [20-40K]: < 1.5% (linear load) [60-120K]: < 2% (linear load) ≤105 %: continuous 106% ~ ≤125%: 10 minutes 126% ~ ≤150%: 1 minute >150%: 1 second 1 50/60Hz +/- 0.05Hz
